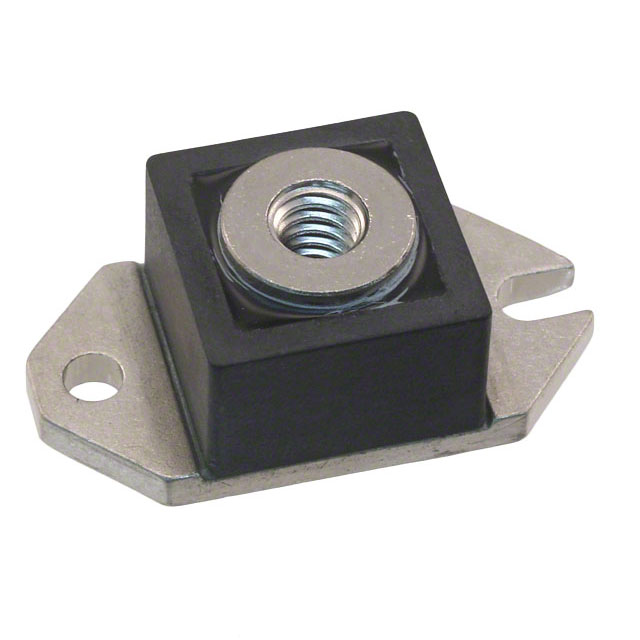

| Part Number | HS24040 | HS24045 | HS24040R |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky, Reverse Polarity |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 45 V | 40 V |
| Current - Average Rectified (Io) | 240A | 240A | 240A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 240 A | 550 mV @ 240 A | 550 mV @ 240 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 12 mA @ 40 V | 12 mA @ 45 V | 12 mA @ 40 V |
| Capacitance @ Vr, F | 10500pF @ 5V, 1MHz | 10500pF @ 5V, 1MHz | 10500pF @ 5V, 1MHz |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | HALF-PAK | HALF-PAK | HALF-PAK |
| Supplier Device Package | HALF-PAK | HALF-PAK | HALF-PAK |
| Operating Temperature - Junction | - | - | - |
