Microsemi Corporation-HS12045 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	45 V
Current - Average Rectified (Io):	120A
Voltage - Forward (Vf) (Max) @ If:	550 mV @ 120 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	5 mA @ 45 V
Capacitance @ Vr, F:	5500pF @ 5V, 1MHz
Mounting Type:	Chassis Mount
Package / Case:	HALF-PAK
Supplier Device Package:	HALF-PAK
Operating Temperature - Junction:	-

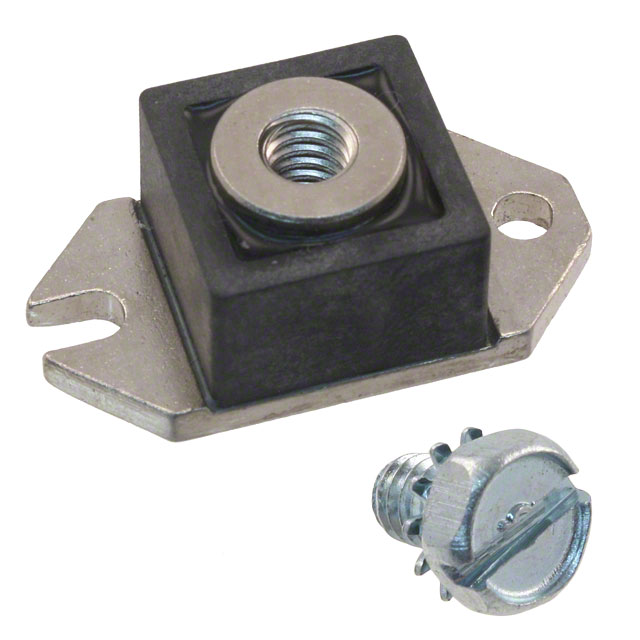

Microsemi Corporation HS12045
