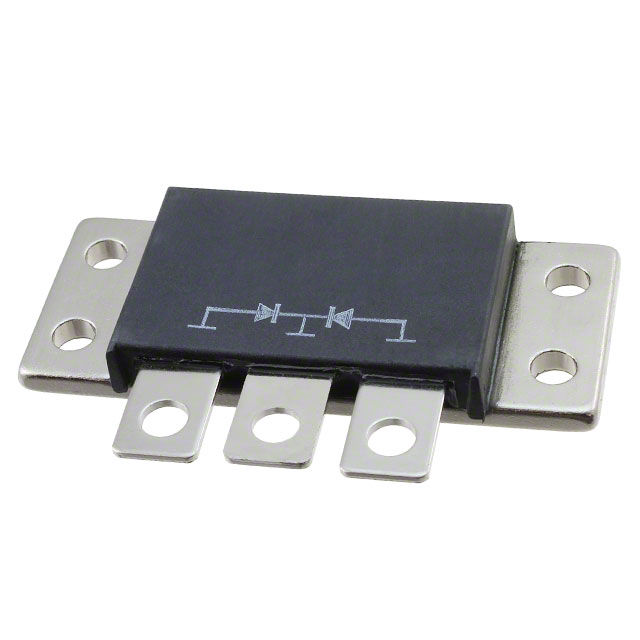

| Part Number | FST80100A | FST80100D | FST60100A |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Anode | 1 Pair Series Connection | 1 Pair Common Anode |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 100 V |
| Current - Average Rectified (Io) (per Diode) | 40A | 40A | 60A |
| Voltage - Forward (Vf) (Max) @ If | 820 mV @ 40 A | 820 mV @ 40 A | 860 mV @ 60 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 2 mA @ 100 V | 2 mA @ 100 V | 2 mA @ 100 V |
| Operating Temperature - Junction | - | - | - |
| Mounting Type | Screw Mount | Screw Mount | Chassis Mount |
| Package / Case | TO-249AA | TO-249AA | TO-249-9, TO-249AA Variant |
| Supplier Device Package | TO-249 | TO-249 | TO-249 |
