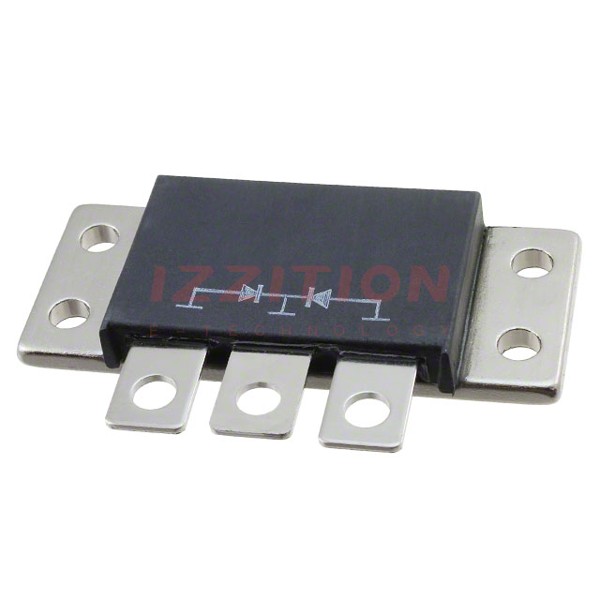

| Part Number | FST16090 | FST16090D | FST16090A | FST16020 | FST16030 | FST16040 | FST16050 | FST16060 | FST16080 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor | Microsemi Corporation | GeneSiC Semiconductor | GeneSiC Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active | Active | Obsolete | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Series Connection | 1 Pair Common Anode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 90 V | 90 V | 90 V | 20 V | 30 V | 40 V | 50 V | 60 V | 80 V |
| Current - Average Rectified (Io) (per Diode) | 80A | 80A | 80A | 160A (DC) | 160A (DC) | 160A (DC) | 80A | 160A (DC) | 160A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 960 mV @ 80 A | 960 mV @ 80 A | 960 mV @ 80 A | 750 mV @ 160 A | 750 mV @ 160 A | 750 mV @ 160 A | 740 mV @ 80 A | 800 mV @ 160 A | 880 mV @ 160 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 2 mA @ 90 V | 2 mA @ 90 V | 2 mA @ 90 V | 1 mA @ 20 V | 1 mA @ 20 V | 1 mA @ 20 V | 2 mA @ 50 V | 1 mA @ 20 V | 1 mA @ 20 V |
| Operating Temperature - Junction | - | - | - | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | - | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Screw Mount | Screw Mount | Screw Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | TO-249AA | TO-249AA | TO-249AA | TO-249AB | TO-249AB | TO-249AB | TO-249AA Isolated Base | TO-249AB | TO-249AB |
| Supplier Device Package | TO-249 | TO-249 | TO-249 | TO-249AB | TO-249AB | TO-249AB | TO-249 | TO-249AB | TO-249AB |
