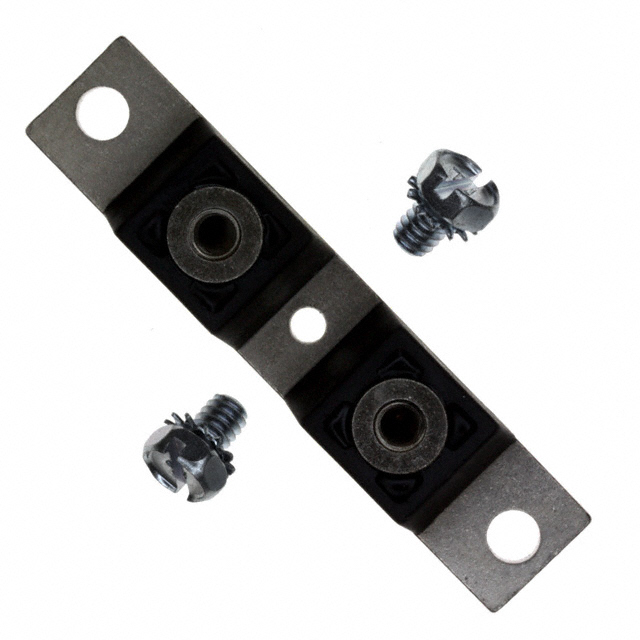

| Part Number | CPT600100 | CPT400100 | CPT500100 |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 100 V |
| Current - Average Rectified (Io) (per Diode) | 300A | 200A | 250A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 300 A | 890 mV @ 200 A | 900 mV @ 250 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 8 mA @ 100 V | 5 mA @ 100 V | 8 mA @ 100 V |
| Operating Temperature - Junction | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Twin Tower | Twin Tower | TO-244AB |
| Supplier Device Package | Twin Tower | Twin Tower | TO-244AB |
