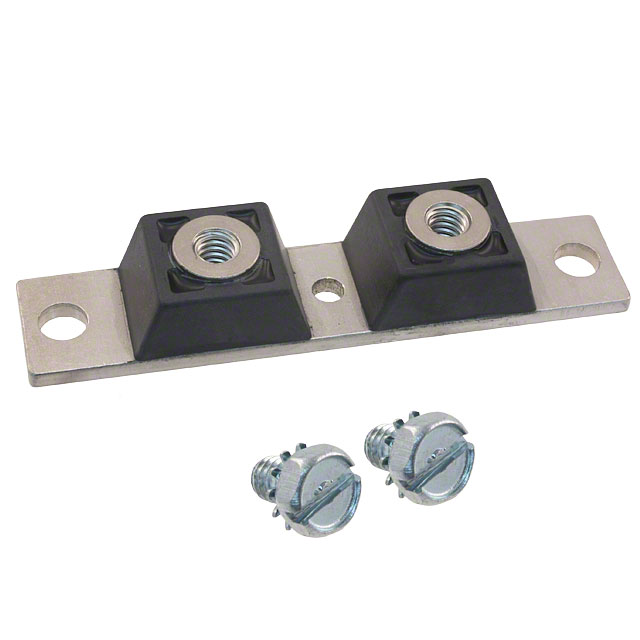

| Part Number | CPT30090 | CPT40090 | CPT30040 | CPT30050 | CPT30060 |
|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 90 V | 90 V | 40 V | 50 V | 60 V |
| Current - Average Rectified (Io) (per Diode) | 150A | 200A | 150A | 150A | 150A |
| Voltage - Forward (Vf) (Max) @ If | 980 mV @ 200 mA | 890 mV @ 200 A | 760 mV @ 200 A | 760 mV @ 200 A | 820 mV @ 200 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 4 mA @ 90 V | 5 mA @ 90 V | 4 mA @ 40 V | 4 mA @ 50 V | 4 mA @ 60 V |
| Operating Temperature - Junction | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | MD3CC | TO-244AB | TO-244AB | MD3CC | MD3CC |
| Supplier Device Package | Twin Tower | TO-244AB | TO-244AB | Twin Tower | Twin Tower |
