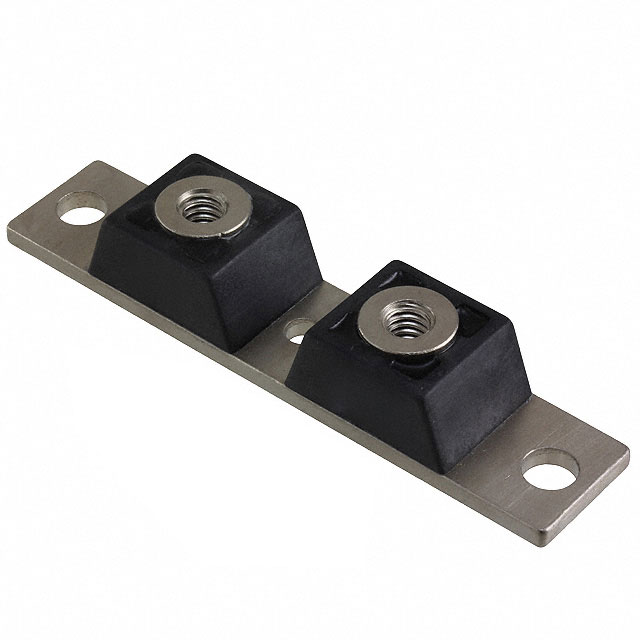

| Part Number | CPT20145 | CPT40145 | CPT50145 | CPT30145 | CPT60145 |
|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V | 45 V | 45 V | 45 V |
| Current - Average Rectified (Io) (per Diode) | 100A | 200A | 250A | 150A | 300A |
| Voltage - Forward (Vf) (Max) @ If | 680 mV @ 200 A | 570 mV @ 200 A | 550 mV @ 250 A | 620 mV @ 200 A | 550 mV @ 300 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 4 mA @ 45 V | 10 mA @ 45 V | 12 mA @ 45 V | 4 mA @ 45 V | 21 mA @ 45 V |
| Operating Temperature - Junction | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | TO-244AB | MD3CC | MD3CC | Twin Tower | MD3CC |
| Supplier Device Package | TO-244AB | MD3CC | Twin Tower | Twin Tower | Twin Tower |
