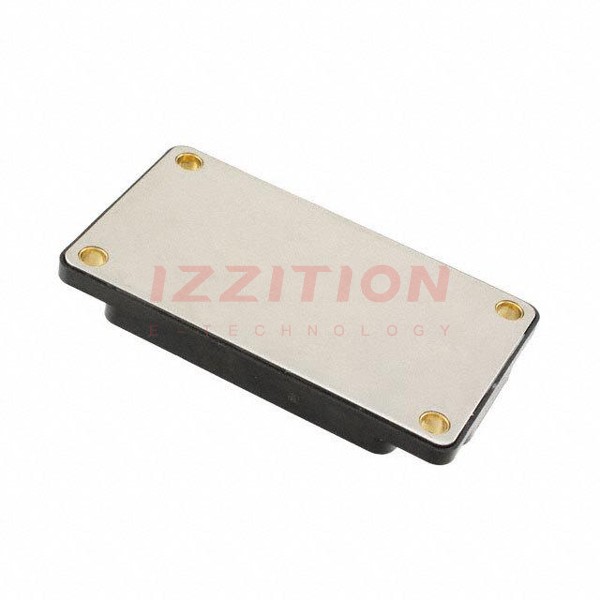

| Part Number | APTM10TDUM09PG | APTM10TDUM19PG |
|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete |
| FET Type | 6 N-Channel (3-Phase Bridge) | 6 N-Channel (3-Phase Bridge) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 100V | 100V |
| Current - Continuous Drain (Id) @ 25°C | 139A | 70A |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 69.5A, 10V | 21mOhm @ 35A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 2.5mA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 350nC @ 10V | 200nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 9875pF @ 25V | 5100pF @ 25V |
| Power - Max | 390W | 208W |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SP6 | SP6 |
| Supplier Device Package | SP6-P | SP6-P |
