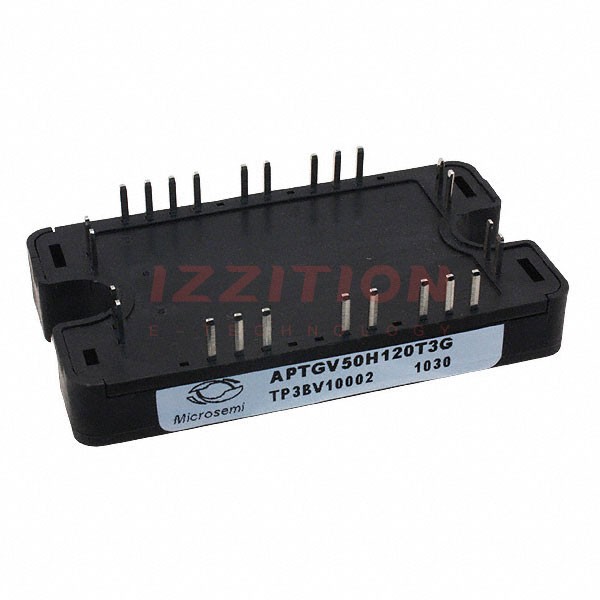

| Part Number | APTGV50H120T3G | APTGT50H120T3G |
|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology |
| Product Status | Obsolete | Active |
| IGBT Type | NPT, Trench Field Stop | Trench Field Stop |
| Configuration | Full Bridge Inverter | Full Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 75 A | 75 A |
| Power - Max | 270 W | 270 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 50A | 2.1V @ 15V, 50A |
| Current - Collector Cutoff (Max) | 250 µA | 250 µA |
| Input Capacitance (Cies) @ Vce | 3.6 nF @ 25 V | 3.6 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | - | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SP3 | SP3 |
| Supplier Device Package | SP3 | SP3 |
