APTGF90DU60TG
  • Share:

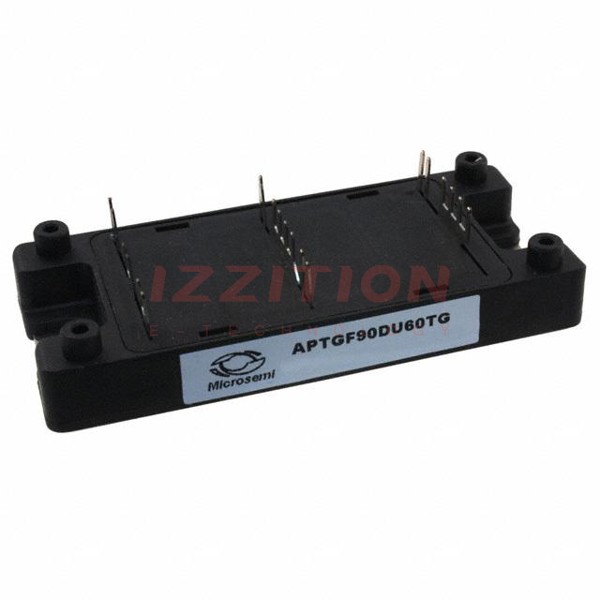

Microsemi Corporation APTGF90DU60TG

Manufacturer No:
APTGF90DU60TG
Manufacturer:
Microsemi Corporation
Package:
Bulk
Datasheet:
APTGF90DU60TG Datasheet
ECAD Model:
-
Description:
IGBT MODULE 600V 110A 416W SP4
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

IGBT Type:NPT
Configuration:Dual, Common Source
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):110 A
Power - Max:416 W
Vce(on) (Max) @ Vge, Ic:2.5V @ 15V, 90A
Current - Collector Cutoff (Max):250 µA
Input Capacitance (Cies) @ Vce:4.3 nF @ 25 V
Input:Standard
NTC Thermistor:Yes
Operating Temperature:-
Mounting Type:Chassis Mount
Package / Case:SP4
Supplier Device Package:SP4
0 Remaining View Similar

In Stock

-
184

Please send RFQ , we will respond immediately.
