Please send RFQ , we will respond immediately.

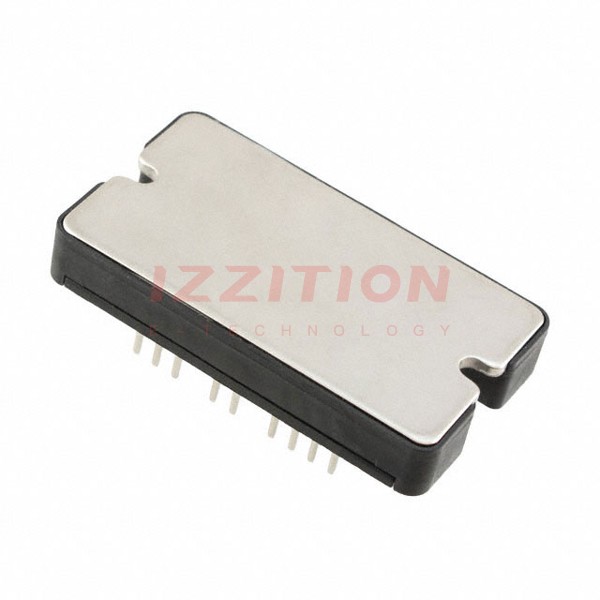

| Part Number | APTGF90DH60T3G | APTGF90H60T3G |
|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology |
| Product Status | Obsolete | Obsolete |
| IGBT Type | NPT | NPT |
| Configuration | Asymmetrical Bridge | Full Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 110 A | 120 A |
| Power - Max | 416 W | 416 W |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 100A | 2.45V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 250 µA | 250 µA |
| Input Capacitance (Cies) @ Vce | 4.3 nF @ 25 V | 4.4 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SP3 | SP3 |
| Supplier Device Package | SP3 | SP3 |
