Microsemi Corporation-APTGF50H120TG - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	NPT
Configuration:	Full Bridge Inverter
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	75 A
Power - Max:	312 W
Vce(on) (Max) @ Vge, Ic:	3.7V @ 15V, 50A
Current - Collector Cutoff (Max):	250 µA
Input Capacitance (Cies) @ Vce:	3.45 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-
Mounting Type:	Chassis Mount
Package / Case:	SP4
Supplier Device Package:	SP4

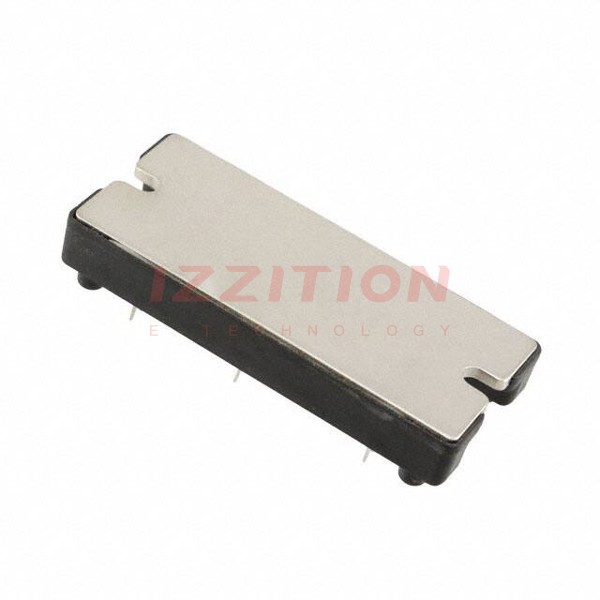

Microsemi Corporation APTGF50H120TG
