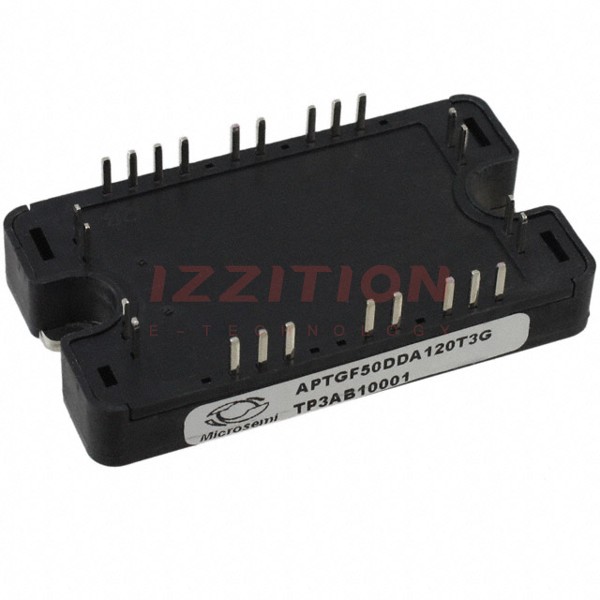

| Part Number | APTGF50DDA120T3G | APTGT50DDA120T3G | APTGF50VDA120T3G |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology | Microsemi Corporation |
| Product Status | Obsolete | Active | Obsolete |
| IGBT Type | NPT | Trench Field Stop | NPT |
| Configuration | Dual Boost Chopper | Dual Boost Chopper | Dual Boost Chopper |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 70 A | 75 A | 70 A |
| Power - Max | 312 W | 270 W | 312 W |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 50A | 2.1V @ 15V, 50A | 3.7V @ 15V, 50A |
| Current - Collector Cutoff (Max) | 250 µA | 250 µA | 250 µA |
| Input Capacitance (Cies) @ Vce | 3.45 nF @ 25 V | 3.6 nF @ 25 V | 3.45 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | - | -40°C ~ 175°C (TJ) | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | SP3 | SP3 | SP3 |
| Supplier Device Package | SP3 | SP3 | SP3 |
