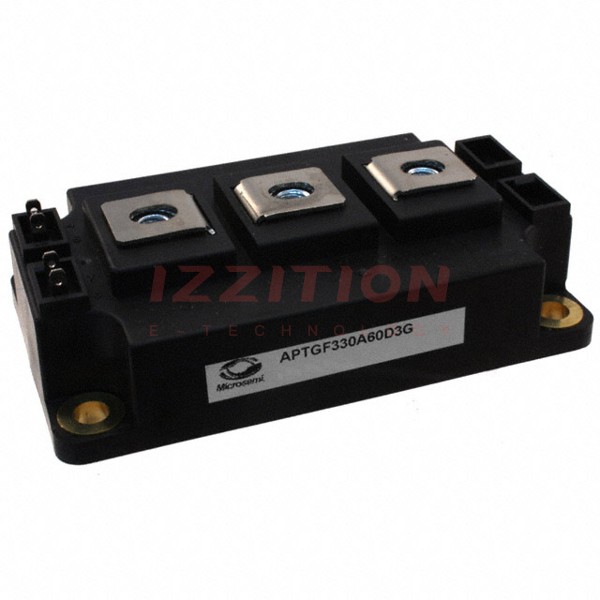

| Part Number | APTGF330A60D3G | APTGF330DA60D3G |
|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete |
| IGBT Type | NPT | NPT |
| Configuration | Half Bridge | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 520 A | 460 A |
| Power - Max | 1560 W | 1400 W |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 400A | 2.5V @ 15V, 400A |
| Current - Collector Cutoff (Max) | 500 µA | 750 µA |
| Input Capacitance (Cies) @ Vce | 18 nF @ 25 V | 18 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | - | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | D-3 Module | D-3 Module |
| Supplier Device Package | D3 | D3 |
