Microsemi Corporation-APTGF30TL601G - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	NPT
Configuration:	Three Level Inverter
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	42 A
Power - Max:	140 W
Vce(on) (Max) @ Vge, Ic:	2.45V @ 15V, 30A
Current - Collector Cutoff (Max):	250 µA
Input Capacitance (Cies) @ Vce:	1.35 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-
Mounting Type:	Chassis Mount
Package / Case:	SP1
Supplier Device Package:	SP1

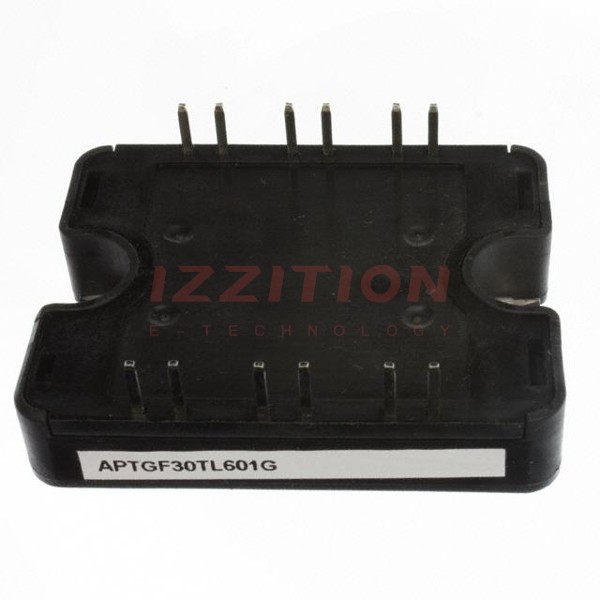

Microsemi Corporation APTGF30TL601G
