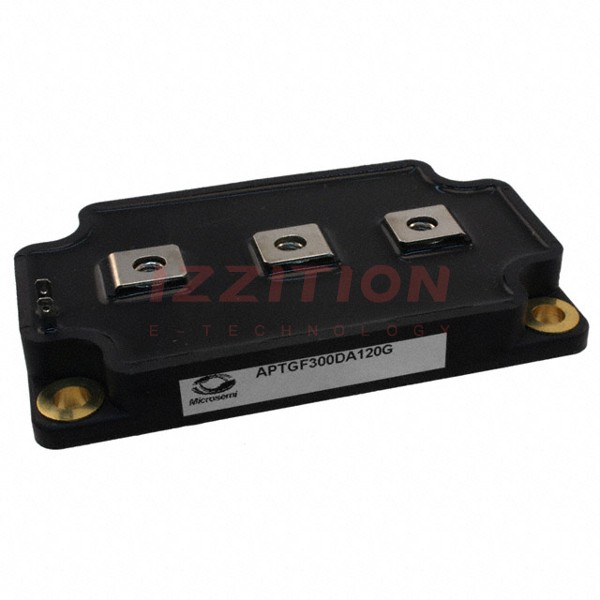

| Part Number | APTGF300DA120G | APTGT300DA120G | APTGF300A120G |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Active | Obsolete |
| IGBT Type | NPT | Trench Field Stop | NPT |
| Configuration | Single | Single | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 400 A | 420 A | 400 A |
| Power - Max | 1780 W | 1380 W | 1780 W |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 300A | 2.1V @ 15V, 300A | 3.9V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 500 µA | 500 µA | 500 µA |
| Input Capacitance (Cies) @ Vce | 21 nF @ 25 V | 21 nF @ 25 V | 21 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | No | No | No |
| Operating Temperature | - | -40°C ~ 150°C (TJ) | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | SP6 | SP6 | SP6 |
| Supplier Device Package | SP6 | SP6 | SP6 |
