Microsemi Corporation-APTGF300A120D3G - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	NPT
Configuration:	Half Bridge
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	420 A
Power - Max:	2100 W
Vce(on) (Max) @ Vge, Ic:	3.7V @ 15V, 300A
Current - Collector Cutoff (Max):	5 mA
Input Capacitance (Cies) @ Vce:	19 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-
Mounting Type:	Chassis Mount
Package / Case:	D-3 Module
Supplier Device Package:	D3

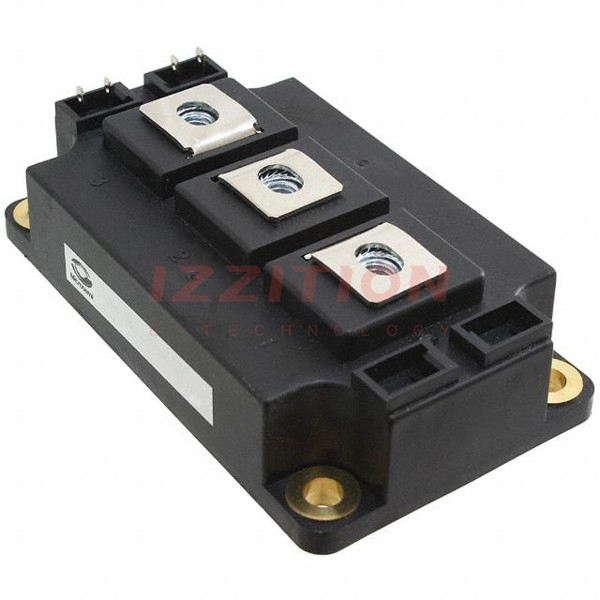

Microsemi Corporation APTGF300A120D3G
