Please send RFQ , we will respond immediately.

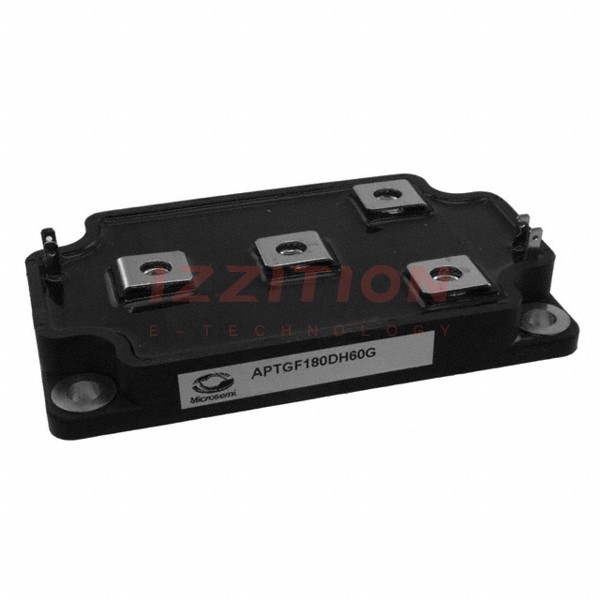

| Part Number | APTGF180DH60G | APTGF180H60G |
|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology |
| Product Status | Obsolete | Obsolete |
| IGBT Type | NPT | NPT |
| Configuration | Asymmetrical Bridge | Full Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 220 A | 220 A |
| Power - Max | 833 W | 833 W |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 180A | 2.5V @ 15V, 180A |
| Current - Collector Cutoff (Max) | 300 µA | 300 µA |
| Input Capacitance (Cies) @ Vce | 8.6 nF @ 25 V | 8.6 nF @ 25 V |
| Input | Standard | Standard |
| NTC Thermistor | No | No |
| Operating Temperature | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SP6 | SP6 |
| Supplier Device Package | SP6 | SP6 |
