Please send RFQ , we will respond immediately.

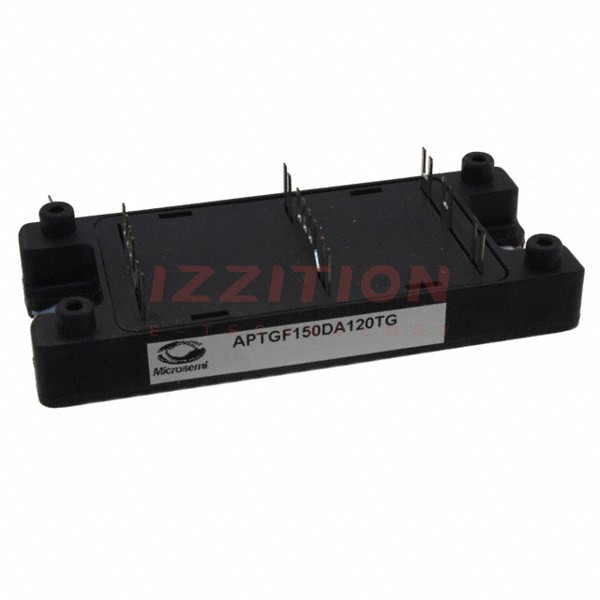

| Part Number | APTGF150DA120TG | APTGF150DU120TG | APTGF100DA120TG | APTGF150A120TG |
|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | NPT | NPT | NPT | NPT |
| Configuration | Single | Dual, Common Source | Single | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 200 A | 200 A | 135 A | 200 A |
| Power - Max | 961 W | 961 W | 568 W | 961 W |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 150A | 3.7V @ 15V, 150A | 3.7V @ 15V, 100A | 3.7V @ 15V, 150A |
| Current - Collector Cutoff (Max) | 350 µA | 350 µA | 350 µA | 350 µA |
| Input Capacitance (Cies) @ Vce | 10.2 nF @ 25 V | 10.2 nF @ 25 V | 6.9 nF @ 25 V | 10.2 nF @ 25 V |
| Input | Standard | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes | Yes |
| Operating Temperature | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | SP4 | SP4 | SP4 | SP4 |
| Supplier Device Package | SP4 | SP4 | SP4 | SP4 |
