Please send RFQ , we will respond immediately.

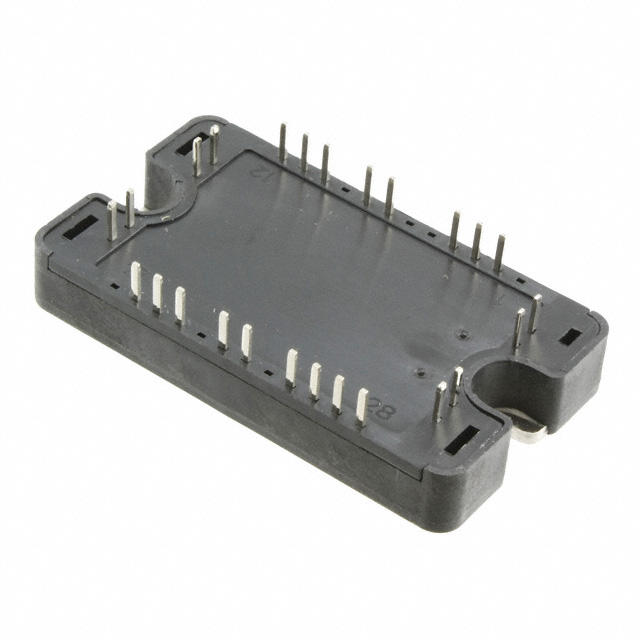

| Part Number | APTGF150A120T3WG | APTGF100A120T3WG | APTGF150A120T3AG |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete |
| IGBT Type | NPT | NPT | NPT |
| Configuration | Half Bridge | Half Bridge | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 210 A | 130 A | 210 A |
| Power - Max | 961 W | 657 W | 1041 W |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 150A | 3.7V @ 15V, 100A | 3.7V @ 15V, 150A |
| Current - Collector Cutoff (Max) | 250 µA | 250 µA | 250 µA |
| Input Capacitance (Cies) @ Vce | 9.3 nF @ 25 V | 6.5 nF @ 25 V | 9.3 nF @ 25 V |
| Input | Standard | Standard | Standard |
| NTC Thermistor | Yes | Yes | Yes |
| Operating Temperature | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | SP3 | SP3 | SP3 |
| Supplier Device Package | SP3 | SP3 | SP3 |
