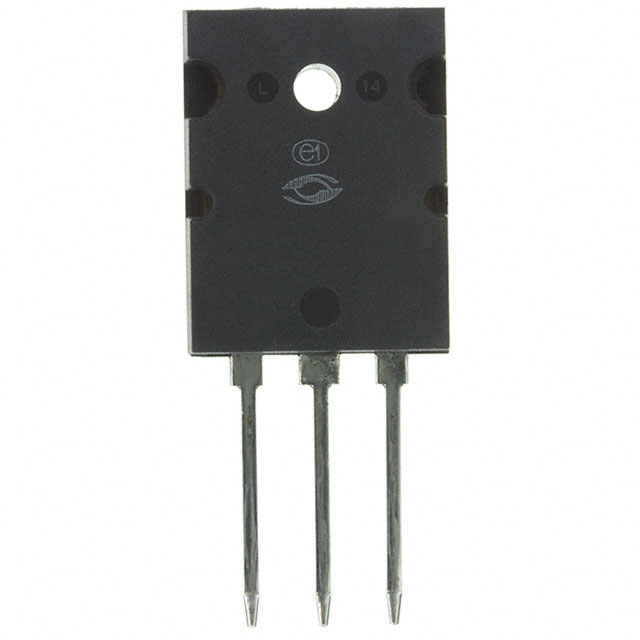

| Part Number | APT8024LLLG | APT8020LLLG | APT8024LFLLG |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 800 V | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Tc) | 38A (Tc) | 31A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | - | 10V |
| Rds On (Max) @ Id, Vgs | 240mOhm @ 15.5A, 10V | 200mOhm @ 19A, 10V | 260mOhm @ 15.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA | 5V @ 2.5mA | 5V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 160 nC @ 10 V | 195 nC @ 10 V | 160 nC @ 10 V |
| Vgs (Max) | ±30V | - | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4670 pF @ 25 V | 5200 pF @ 25 V | 4670 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 565W (Tc) | - | 565W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-264 [L] | TO-264 [L] | TO-264 [L] |
| Package / Case | TO-264-3, TO-264AA | TO-264-3, TO-264AA | TO-264-3, TO-264AA |
