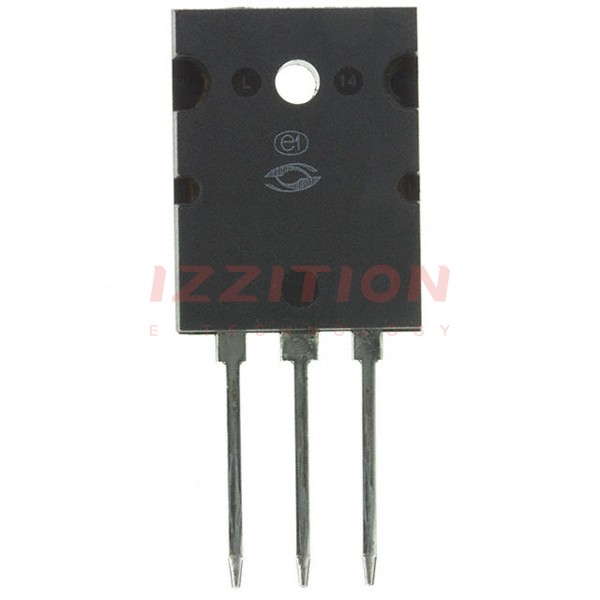

| Part Number | APT60D20LCTG | APT60D60LCTG | APT60D40LCTG | APT60D30LCTG |
|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology | Microchip Technology | Microsemi Corporation |
| Product Status | Obsolete | Active | Active | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 600 V | 400 V | 300 V |
| Current - Average Rectified (Io) (per Diode) | 60A | 60A | 60A | 60A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 60 A | 1.8 V @ 60 A | 1.5 V @ 60 A | 1.4 V @ 60 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 31 ns | 130 ns | 37 ns | 38 ns |
| Current - Reverse Leakage @ Vr | 250 µA @ 200 V | 250 µA @ 600 V | 250 µA @ 400 V | 250 µA @ 300 V |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-264-3, TO-264AA | TO-264-3, TO-264AA | TO-264-3, TO-264AA | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 [L] | TO-264 [L] | TO-264 [L] | TO-264 [L] |
