Please send RFQ , we will respond immediately.

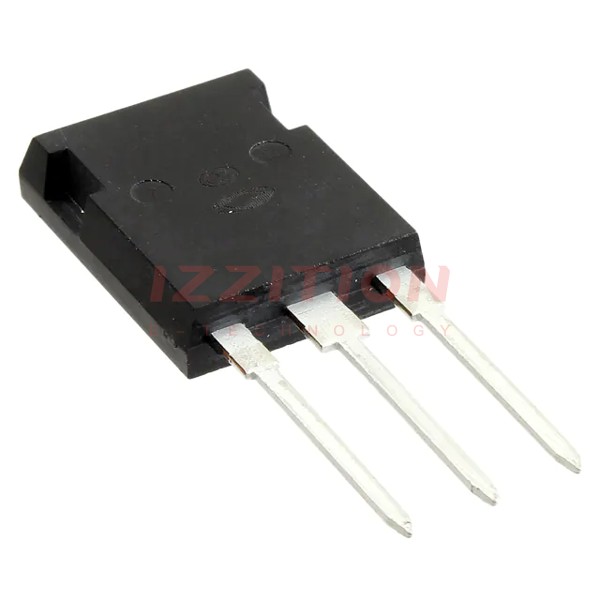

| Part Number | APT5014SLLG/TR | APT5024SLLG/TR | APT5018SLLG/TR |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) | 22A (Tc) | 27A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 140mOhm @ 17.5A, 10V | 240mOhm @ 11A, 10V | 180mOhm @ 13.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 1mA | 5V @ 1mA | 5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 72 nC @ 10 V | 43 nC @ 10 V | 58 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3261 pF @ 25 V | 1900 pF @ 25 V | 2596 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 403W (Tc) | 265W (Tc) | 300W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Surface Mount |
| Supplier Device Package | TO-247 | D3PAK | D3PAK |
| Package / Case | TO-247-3 | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
