| Part Number | APT2X30DC120J | APT2X30DQ120J | APT2X50DC120J | APT2X31DC120J | APT2X40DC120J | APT2X60DC120J | APT2X20DC120J | APT2X30D120J |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microchip Technology |
| Product Status | Obsolete | Active | Active | Obsolete | Active | Active | Active | Active |
| Diode Configuration | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent |
| Diode Type | Silicon Carbide Schottky | Standard | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 30A | 30A | 50A | 30A | 40A | 60A | 20A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 30 A | 3.1 V @ 30 A | 1.8 V @ 50 A | 1.8 V @ 30 A | 1.8 V @ 40 A | 1.8 V @ 60 A | 1.8 V @ 20 A | 2.5 V @ 30 A |
| Speed | No Recovery Time > 500mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 300 ns | 0 ns | 0 ns | 0 ns | 0 ns | 0 ns | 370 ns |
| Current - Reverse Leakage @ Vr | 600 µA @ 1200 V | 100 µA @ 1200 V | 1 mA @ 1200 V | 600 µA @ 1200 V | 800 µA @ 1200 V | 1.2 mA @ 1200 V | 400 µA @ 1200 V | 250 µA @ 1200 V |
| Operating Temperature - Junction | - | - | - | - | - | - | -55°C ~ 175°C | -55°C ~ 175°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |

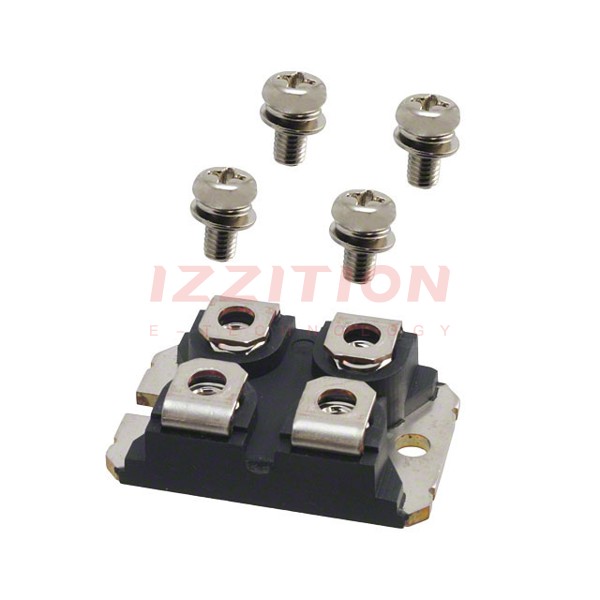

| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227 | ISOTOP® | SOT-227 | SOT-227 | SOT-227 | SOT-227 | SOT-227 | ISOTOP® |
