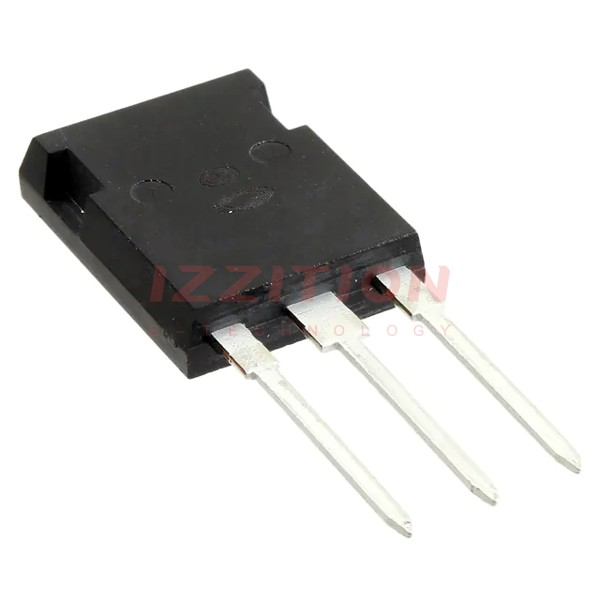

| Part Number | APT25GR120BSCD10 | APT25GR120SSCD10 |
|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete |
| IGBT Type | NPT | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 75 A | 75 A |
| Current - Collector Pulsed (Icm) | 100 A | 100 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 25A | 3.2V @ 15V, 25A |
| Power - Max | 521 W | 521 W |
| Switching Energy | 434µJ (on), 466µJ (off) | 434µJ (on), 466µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 203 nC | 203 nC |
| Td (on/off) @ 25°C | 16ns/122ns | 16ns/122ns |
| Test Condition | 600V, 25A, 4.3Ohm, 15V | 600V, 25A, 4.3Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount |
| Package / Case | TO-247-3 | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-247 | D3PAK |
