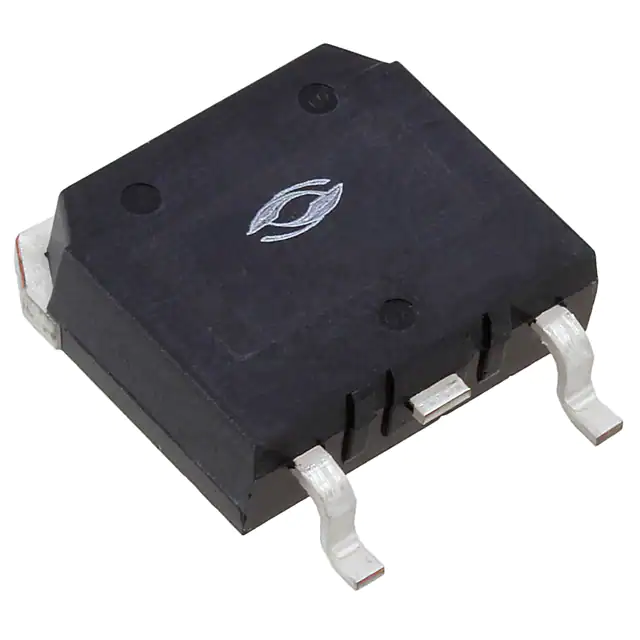

| Part Number | APT20F50S | APT30F50S | APT24F50S | APT20F50B |
|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microchip Technology | Microsemi Corporation | Microsemi Corporation |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 500 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) | 30A (Tc) | 24A (Tc) | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 300mOhm @ 10A, 10V | 190mOhm @ 14A, 10V | 240mOhm @ 11A, 10V | 300mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 500µA | 5V @ 1mA | 5V @ 1mA | 5V @ 500µA |
| Gate Charge (Qg) (Max) @ Vgs | 75 nC @ 10 V | 115 nC @ 10 V | 90 nC @ 10 V | 75 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2950 pF @ 25 V | 4525 pF @ 25 V | 3630 pF @ 25 V | 2950 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 290W (Tc) | 415W (Tc) | 335W (Tc) | 290W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Supplier Device Package | D3PAK | D3PAK | D3PAK | TO-247 [B] |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-247-3 |
