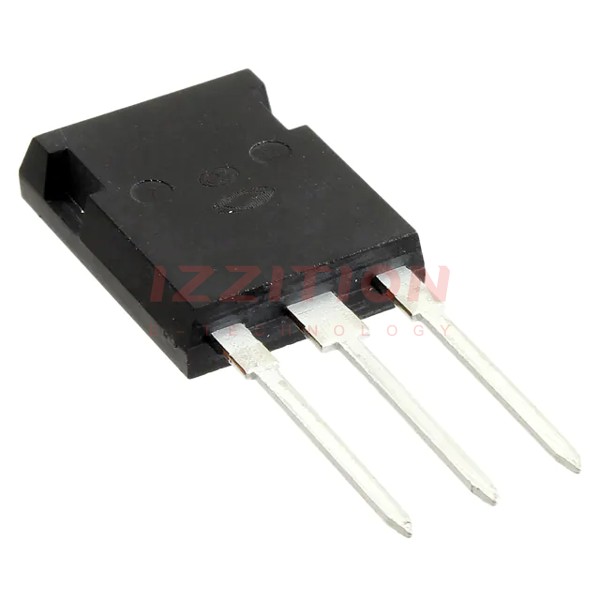

| Part Number | APT15GP90BG | APT15GP90KG | APT25GP90BG | APT15GP60BG |
|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microchip Technology | Microchip Technology |
| Product Status | Active | Obsolete | Active | Active |
| IGBT Type | PT | PT | PT | PT |
| Voltage - Collector Emitter Breakdown (Max) | 900 V | 900 V | 900 V | 600 V |
| Current - Collector (Ic) (Max) | 43 A | 43 A | 72 A | 56 A |
| Current - Collector Pulsed (Icm) | 60 A | 60 A | 110 A | 65 A |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 15A | 3.9V @ 15V, 15A | 3.9V @ 15V, 25A | 2.7V @ 15V, 15A |
| Power - Max | 250 W | 250 W | 417 W | 250 W |
| Switching Energy | 200µJ (off) | 200µJ (off) | 370µJ (off) | 130µJ (on), 121µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 60 nC | 60 nC | 110 nC | 55 nC |
| Td (on/off) @ 25°C | 9ns/33ns | 9ns/33ns | 13ns/55ns | 8ns/29ns |
| Test Condition | 600V, 15A, 4.3Ohm, 15V | 600V, 15A, 4.3Ohm, 15V | 600V, 25A, 5Ohm, 15V | 400V, 15A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - | - | - | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-220-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 [B] | TO-220 [K] | TO-247 [B] | TO-247 [B] |
