Microsemi Corporation-APT10043JVR - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	1000 V
Current - Continuous Drain (Id) @ 25°C:	22A (Tj)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	430mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id:	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	480 nC @ 10 V
Vgs (Max):	-
Input Capacitance (Ciss) (Max) @ Vds:	9000 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	-
Operating Temperature:	-
Mounting Type:	Chassis Mount
Supplier Device Package:	ISOTOP®
Package / Case:	SOT-227-4, miniBLOC

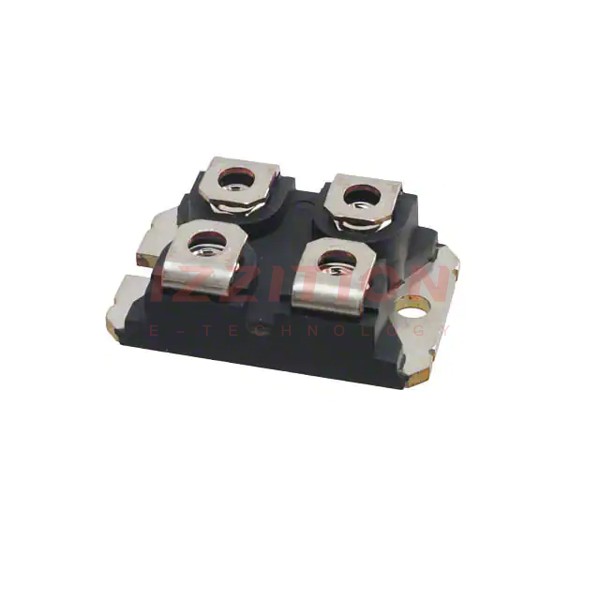

Microsemi Corporation APT10043JVR
