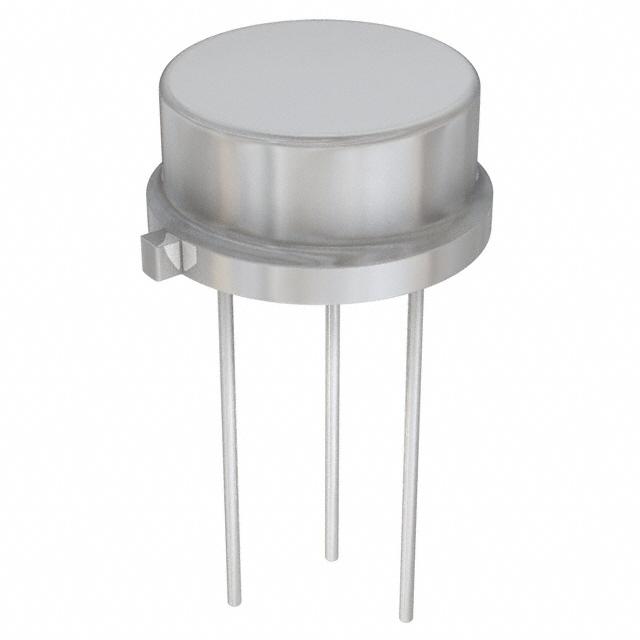

| Part Number | 2N6802 | 2N6800 |
|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 400 V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Tc) | 3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 1.5A, 10V | 1Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4.46 nC @ 10 V | 5.75 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | - |
| FET Feature | - | - |
| Power Dissipation (Max) | 800mW (Ta), 25W (Tc) | 800mW (Ta), 25W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-39 (TO-205AD) | TO-39 |
| Package / Case | TO-205AD, TO-39-3 Metal Can | TO-205AF Metal Can |
