Please send RFQ , we will respond immediately.

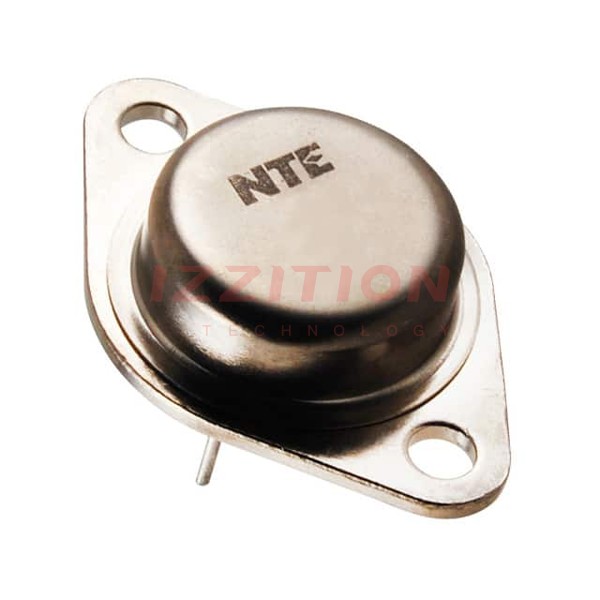

| Part Number | 2N6758 | 2N6759 | 2N6768 | 2N6788 | 2N6798 | 2N6756 | 2N6757 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Harris Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Harris Corporation | Harris Corporation |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V | 350 V | 400 V | 100 V | 200 V | 100 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) | 4.5A (Tc) | 14A (Tc) | 6A (Tc) | 5.5A (Tc) | 14A (Tc) | 8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 490mOhm @ 9A, 10V | 1.5Ohm @ 3A, 10V | 400mOhm @ 14A, 10V | 300mOhm @ 3.5A, 10V | 400mOhm @ 3.5A, 10V | 210mOhm @ 14A, 10V | 600mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 1mA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 250µA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V | - | 110 nC @ 10 V | 18 nC @ 10 V | 5.29 nC @ 10 V | 35 nC @ 10 V | - |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 800 pF @ 25 V | - | - | - | - | 800 pF @ 25 V |
| FET Feature | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 4W (Ta), 75W (Tc) | 75W (Tc) | 4W (Ta), 150W (Tc) | 800mW (Tc) | 800mW (Ta), 25W (Tc) | 4W (Ta), 75W (Tc) | 75W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-204AA | TO-3 | TO-3 | TO-39 | TO-39 | TO-204AA | TO-3 |
| Package / Case | TO-204AA, TO-3 | TO-204AA | TO-204AE | TO-205AF Metal Can | TO-205AF Metal Can | TO-204AA, TO-3 | TO-204AA, TO-3 |
