| Part Number | 2N5015S | 2N5012S | 2N5013S | 2N5014S | 2N5015 |
|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V | 700 V | 800 V | 900 V | 1000 V |
| Vce Saturation (Max) @ Ib, Ic | 1.8V @ 5mA, 20mA | 1.6V @ 5mA, 25mA | 1.6V @ 5mA, 20mA | 1.6V @ 5mA, 20mA | - |
| Current - Collector Cutoff (Max) | 10nA (ICBO) | 10nA (ICBO) | 10nA (ICBO) | 10nA (ICBO) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 20mA, 10V | 30 @ 25mA, 10V | 30 @ 20mA, 10V | 30 @ 20mA, 10V | 30 @ 20mA, 10V |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W |
| Frequency - Transition | - | - | - | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

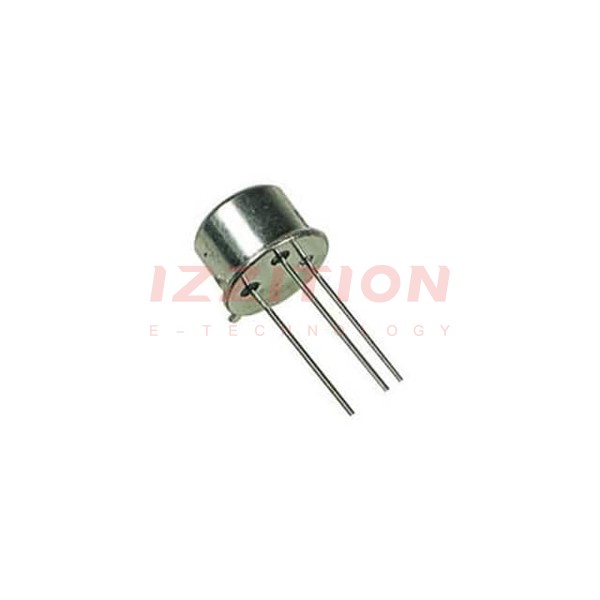

| Package / Case | TO-205AD, TO-39-3 Metal Can | TO-205AD, TO-39-3 Metal Can | TO-205AD, TO-39-3 Metal Can | TO-205AD, TO-39-3 Metal Can | TO-205AA, TO-5-3 Metal Can |
| Supplier Device Package | TO-39 (TO-205AD) | TO-39 (TO-205AD) | TO-39 (TO-205AD) | TO-39 (TO-205AD) | TO-5 |
