Microsemi Corporation-1N5229A (DO-35) - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	1N5229A (DO-35)	1N5229B (DO-35)	1N5224A (DO-35)	1N5226A (DO-35)	1N5227A (DO-35)	1N5228A (DO-35)
Manufacturer	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation
Product Status	Active	Active	Discontinued at Digi-Key	Active	Active	Active
Voltage - Zener (Nom) (Vz)	4.3 V	4.3 V	2.8 V	3.3 V	3.6 V	3.9 V
Tolerance	±10%	±5%	±10%	±10%	±10%	±10%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	22 Ohms	22 Ohms	30 Ohms	28 Ohms	24 Ohms	23 Ohms
Current - Reverse Leakage @ Vr	5 µA @ 1 V	5 µA @ 1 V	75 µA @ 1 V	25 µA @ 1 V	15 µA @ 1 V	10 µA @ 950 mV
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35

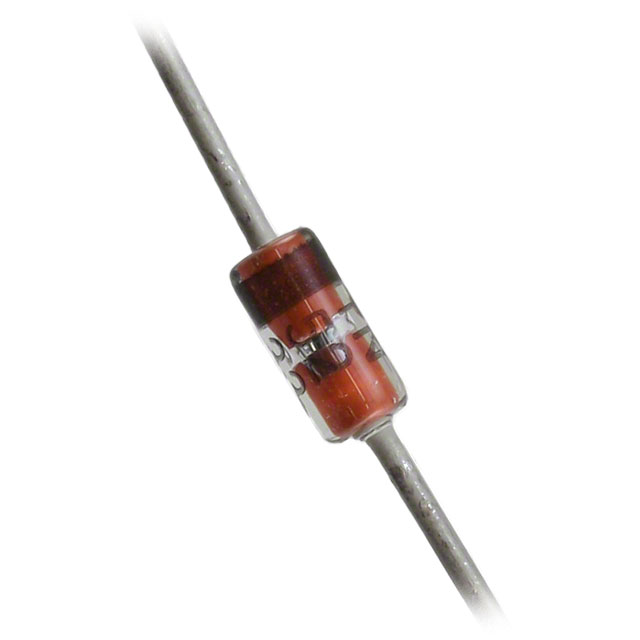

Microsemi Corporation 1N5229A (DO-35)
