Please send RFQ , we will respond immediately.

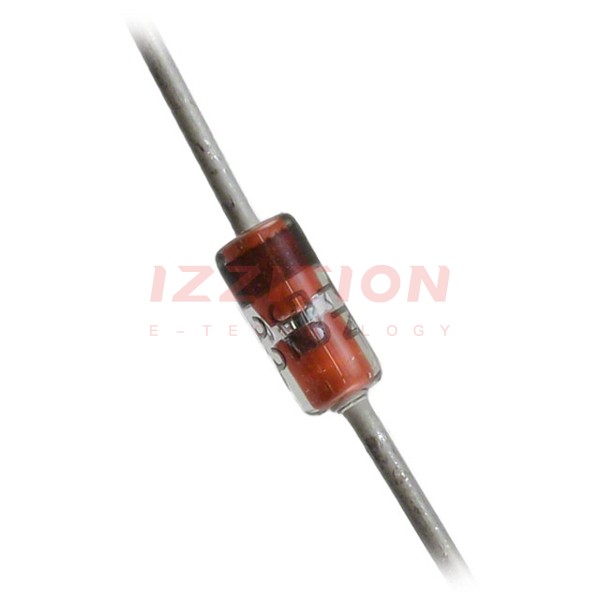

| Part Number | 1N5228B (DO-35) | 1N5229B (DO-35) | 1N5222B (DO-35) | 1N5223B (DO-35) | 1N5224B (DO-35) | 1N5225B (DO-35) | 1N5226B (DO-35) | 1N5227B (DO-35) | 1N5228A (DO-35) |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 3.9 V | 4.3 V | 2.5 V | 2.7 V | 2.8 V | 3 V | 3.3 V | 3.6 V | 3.9 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±10% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 23 Ohms | 22 Ohms | 30 Ohms | 30 Ohms | 30 Ohms | 29 Ohms | 28 Ohms | 24 Ohms | 23 Ohms |
| Current - Reverse Leakage @ Vr | 10 µA @ 1 V | 5 µA @ 1 V | 100 µA @ 1 V | 75 µA @ 1 V | 75 µA @ 1 V | 50 µA @ 1 V | 25 µA @ 1 V | 15 µA @ 1 V | 10 µA @ 950 mV |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 | DO-35 | DO-35 | DO-35 | DO-35 | DO-35 | DO-35 | DO-35 | DO-35 |
