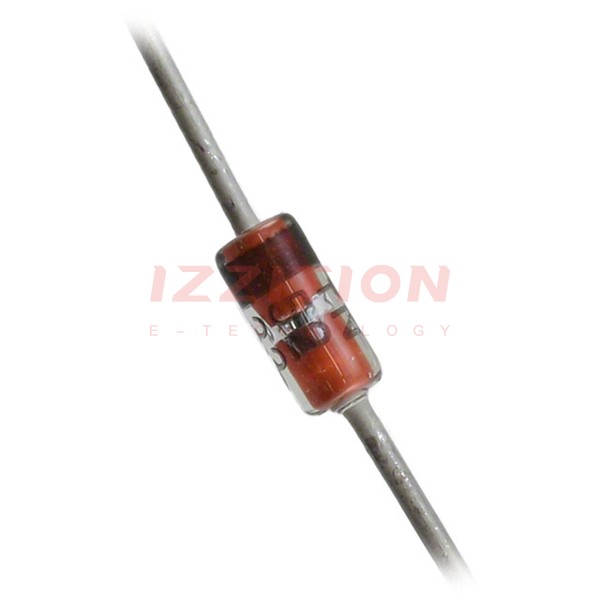

Microsemi Corporation-1N5224A (DO-35) - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	1N5224A (DO-35)	1N5227A (DO-35)	1N5229A (DO-35)	1N5226A (DO-35)	1N5224B (DO-35)	1N5228A (DO-35)	1N5221A (DO-35)	1N5222A (DO-35)
Manufacturer	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation	Microsemi Corporation
Product Status	Discontinued at Digi-Key	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	2.8 V	3.6 V	4.3 V	3.3 V	2.8 V	3.9 V	2.4 V	2.5 V
Tolerance	±10%	±10%	±10%	±10%	±5%	±10%	±10%	±10%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	30 Ohms	24 Ohms	22 Ohms	28 Ohms	30 Ohms	23 Ohms	30 Ohms	30 Ohms
Current - Reverse Leakage @ Vr	75 µA @ 1 V	15 µA @ 1 V	5 µA @ 1 V	25 µA @ 1 V	75 µA @ 1 V	10 µA @ 950 mV	100 µA @ 950 mV	100 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35
