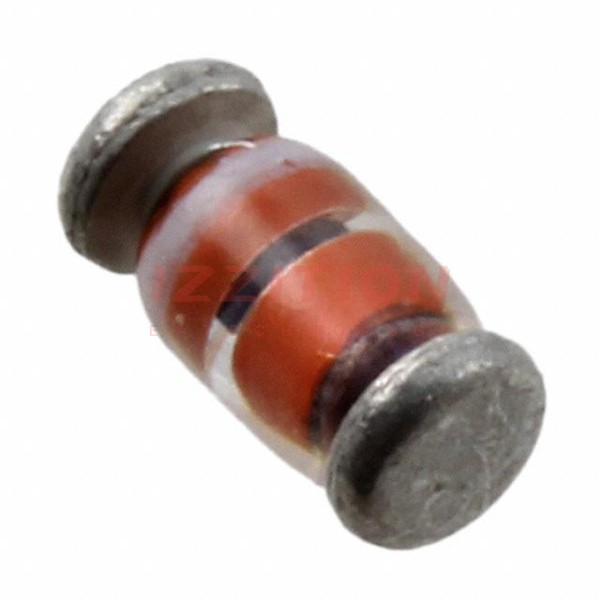

Microsemi Corporation-1N4531UR - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	75 V
Current - Average Rectified (Io):	125mA
Voltage - Forward (Vf) (Max) @ If:	1.2 V @ 100 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	20 ns
Current - Reverse Leakage @ Vr:	500 nA @ 75 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	DO-213AA
Supplier Device Package:	DO-213AA
Operating Temperature - Junction:	-65°C ~ 175°C

Microsemi Corporation 1N4531UR
