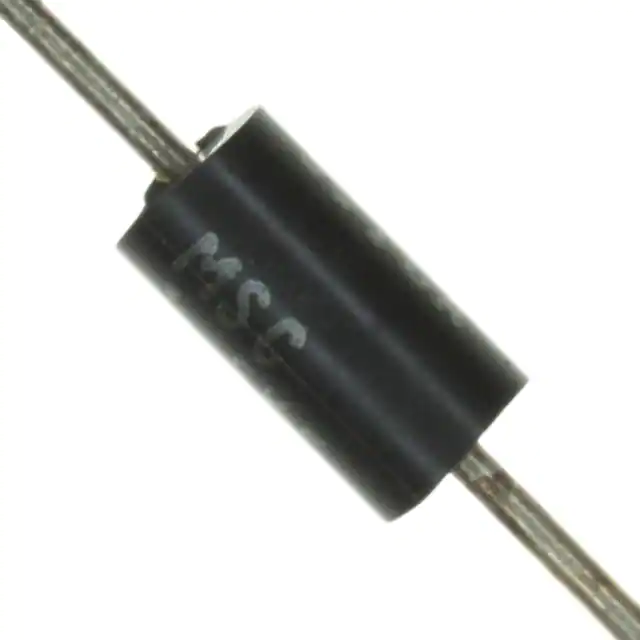

| Part Number | 1.5KE7.5CAE3/TR13 | 1.5KE75CAE3/TR13 | 1.5KE7.5AE3/TR13 |
|---|---|---|---|
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | 1 |
| Bidirectional Channels | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 6.4V | 64.1V | 6.4V |
| Voltage - Breakdown (Min) | 7.13V | 71.3V | 7.13V |
| Voltage - Clamping (Max) @ Ipp | 11.3V | 103V | 11.3V |
| Current - Peak Pulse (10/1000µs) | 132A | 14.6A | 132A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial |
| Supplier Device Package | CASE-1 | CASE-1 | CASE-1 |
