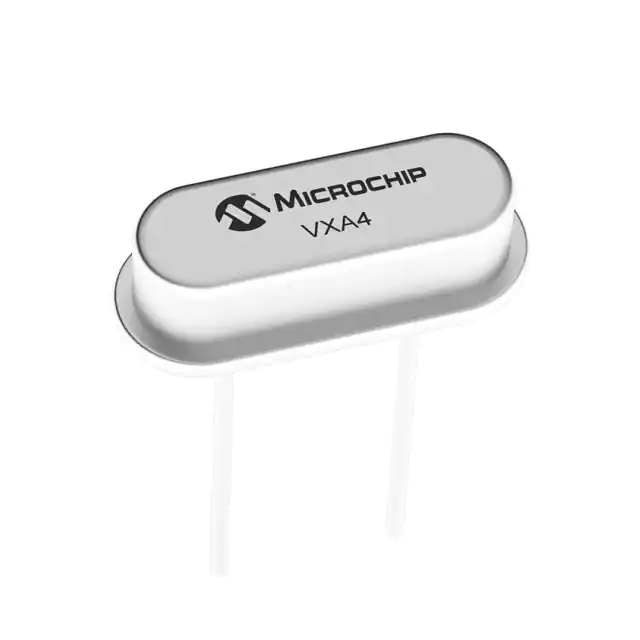

Microchip Technology-VXA4-1KJ-18-4M91520000TR - Crystals Product Specifications and Latest Quotes

Type:	MHz Crystal
Frequency:	4.9152 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±10ppm
Load Capacitance:	18pF
ESR (Equivalent Series Resistance):	120 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-20°C ~ 70°C
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	HC-49/US
Size / Dimension:	0.427" L x 0.177" W (10.85mm x 4.50mm)
Height - Seated (Max):	0.138" (3.50mm)

Microchip Technology VXA4-1KJ-18-4M91520000TR
