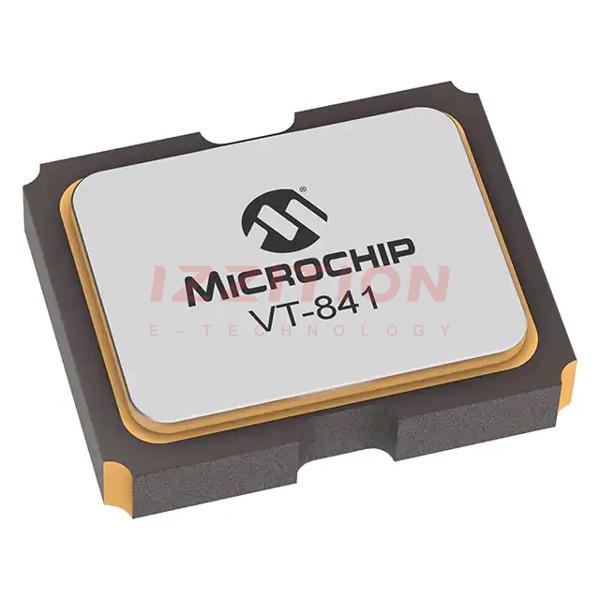

| Part Number | VT-841-JFE-507A-40M0000000 | VT-841-JFE-5070-40M0000000 |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Base Resonator | Crystal | Crystal |
| Type | TCXO | TCXO |
| Frequency | 40 MHz | 40 MHz |
| Function | - | - |
| Output | Clipped Sine Wave | Clipped Sine Wave |
| Voltage - Supply | 1.8V | 1.8V |
| Frequency Stability | ±500ppb | ±500ppb |
| Absolute Pull Range (APR) | ±5ppm | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - |
| Current - Supply (Max) | 2.5mA | 2.5mA |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) |
