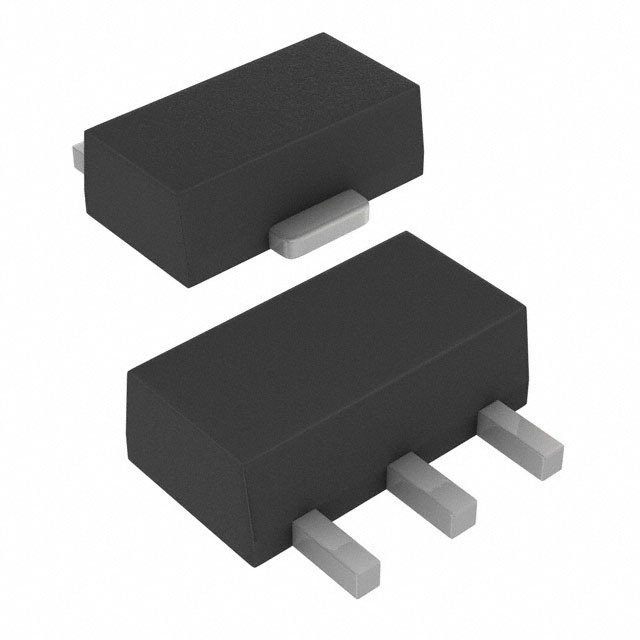

| Part Number | VP3203N8-G | VP3203N3-G |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 1.1A (Tj) | 650mA (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 1.5A, 10V | 600mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 10mA | 3.5V @ 10mA |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 300 pF @ 25 V | 300 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.6W (Ta) | 740mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Through Hole |
| Supplier Device Package | TO-243AA (SOT-89) | TO-92-3 |
| Package / Case | TO-243AA | TO-226-3, TO-92-3 (TO-226AA) |
