Microchip Technology-VN2210N2 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	1.7A (Tj)
Drive Voltage (Max Rds On, Min Rds On):	5V, 10V
Rds On (Max) @ Id, Vgs:	350mOhm @ 4A, 10V
Vgs(th) (Max) @ Id:	2.4V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	500 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	360mW (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-39
Package / Case:	TO-205AD, TO-39-3 Metal Can

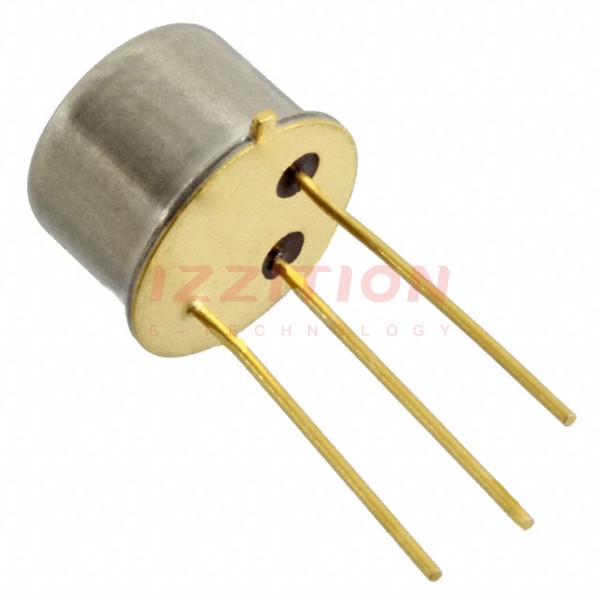

Microchip Technology VN2210N2
