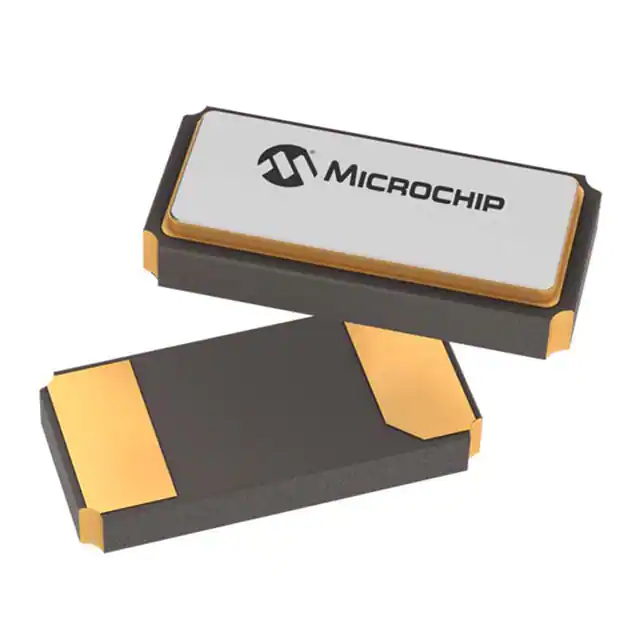

| Part Number | VMK3-9001-32K7680000 | VMK3-9005-32K7680000 | VMK3-9003-32K7680000 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Discontinued at Digi-Key |
| Type | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz | 32.768 kHz | 32.768 kHz |
| Frequency Stability | - | - | - |
| Frequency Tolerance | ±20ppm | ±20ppm | ±20ppm |
| Load Capacitance | - | - | - |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Mode | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
