Microchip Technology-VMK3-1EE-12-32K7680000TR - Crystals Product Specifications and Latest Quotes

Type:	kHz Crystal (Tuning Fork)
Frequency:	32.768 kHz
Frequency Stability:	-
Frequency Tolerance:	±20ppm
Load Capacitance:	12pF
ESR (Equivalent Series Resistance):	70 kOhms
Operating Mode:	Fundamental
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, No Lead
Size / Dimension:	0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max):	0.035" (0.90mm)

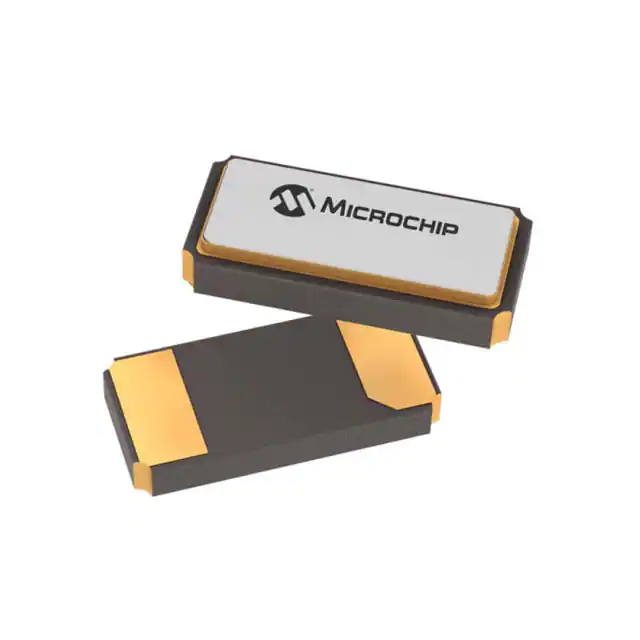

Microchip Technology VMK3-1EE-12-32K7680000TR
