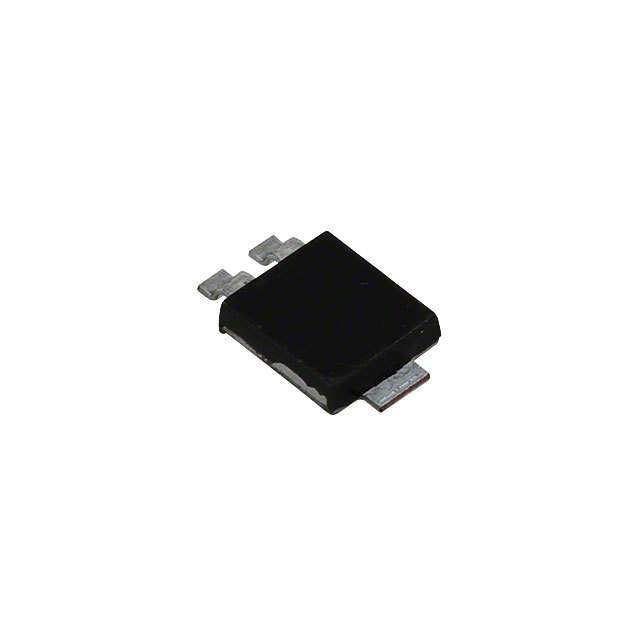

| Part Number | UPS840/TR13 | UPS140/TR13 | UPS340/TR13 | UPS540/TR13 |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 40 V | 40 V |
| Current - Average Rectified (Io) | 8A | 1A | 3A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 8 A | 450 mV @ 1 A | 500 mV @ 3 A | 540 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 5 mA @ 40 V | 400 µA @ 40 V | 500 µA @ 40 V | 500 µA @ 40 V |
| Capacitance @ Vr, F | - | - | 180pF @ 4V, 1MHz | 250pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Powermite®3 | DO-216AA | DO-216AA | DO-216AA |
| Supplier Device Package | Powermite 3 | Powermite | Powermite | Powermite |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
