Microchip Technology-UFT3140C - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io):	30A (DC)
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 15 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	50 ns
Current - Reverse Leakage @ Vr:	15 mA @ 400 V
Capacitance @ Vr, F:	-
Mounting Type:	Chassis Mount
Package / Case:	TO-204AA, TO-3
Supplier Device Package:	TO-204AA (TO-3)
Operating Temperature - Junction:	-65°C ~ 175°C

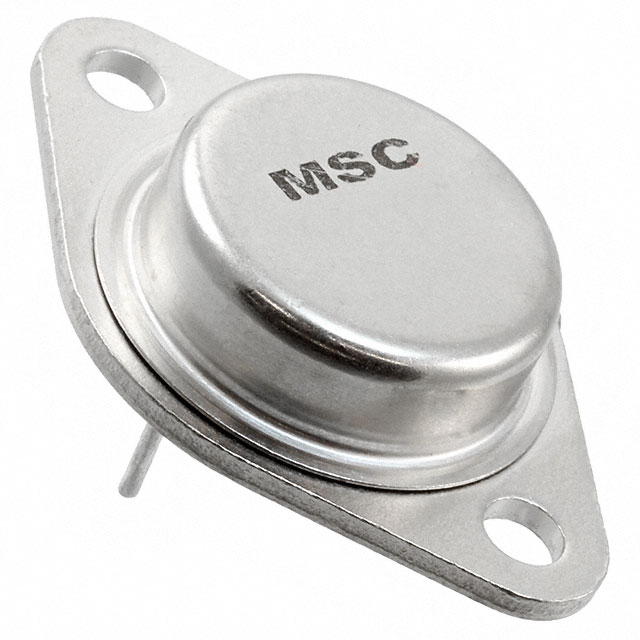

Microchip Technology UFT3140C
