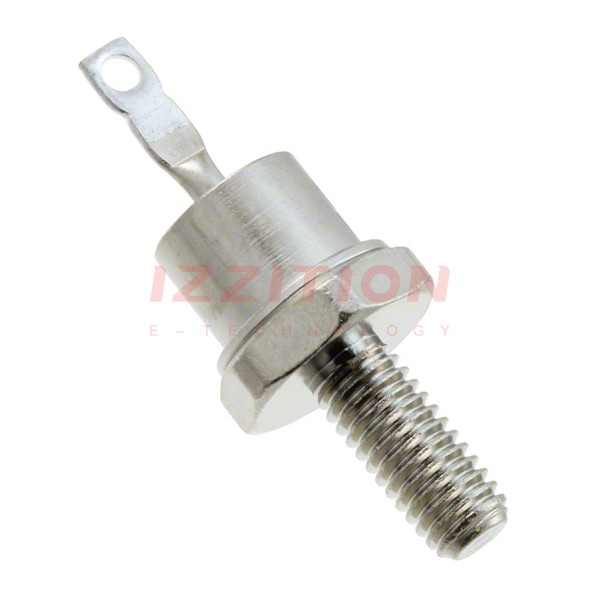

| Part Number | UFR3260 | UFR3250 |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | - |
| Current - Average Rectified (Io) | 30A (DC) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 30 A | 1.2 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns | 60 ns |
| Current - Reverse Leakage @ Vr | 15 µA @ 600 V | - |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Chassis, Stud Mount | Through Hole |
| Package / Case | DO-203AA, DO-4, Stud | TO-204AA, TO-3 |
| Supplier Device Package | DO-4 | TO-204AA (TO-3) |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C |
