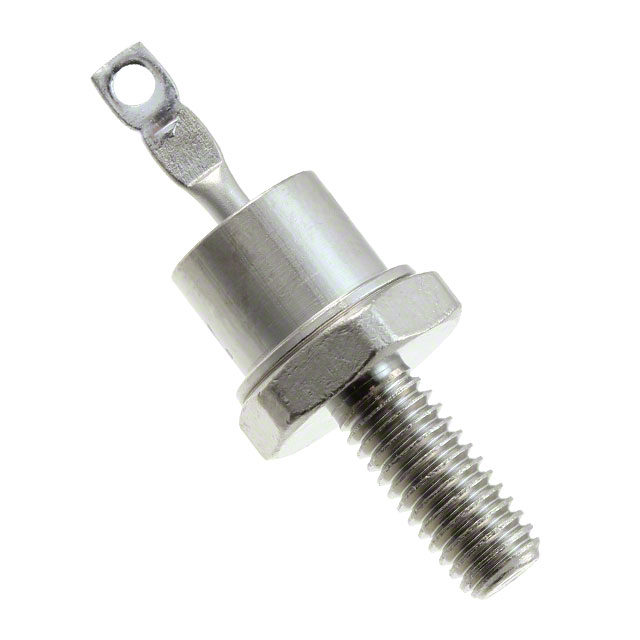

| Part Number | UES706 | UES702 |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Discontinued at Digi-Key |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 100 V |
| Current - Average Rectified (Io) | 20A (DC) | 25A |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 20 A | 950 mV @ 25 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 35 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 400 V | 20 µA @ 100 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | DO-203AA, DO-4, Stud | DO-203AA, DO-4, Stud |
| Supplier Device Package | DO-4 | DO-4 |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 175°C |
