| Part Number | UES2603HR2 | UES2604HR2 | UES2605HR2 | UES2606HR2 |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 150 V | - | - | - |
| Current - Average Rectified (Io) | 30A | 30A | 30A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 930 mV @ 15 A | 1.25 V @ 15 A | 1.25 V @ 15 A | 1.25 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns | 50 ns | 50 ns | 50 ns |
| Current - Reverse Leakage @ Vr | - | - | - | - |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

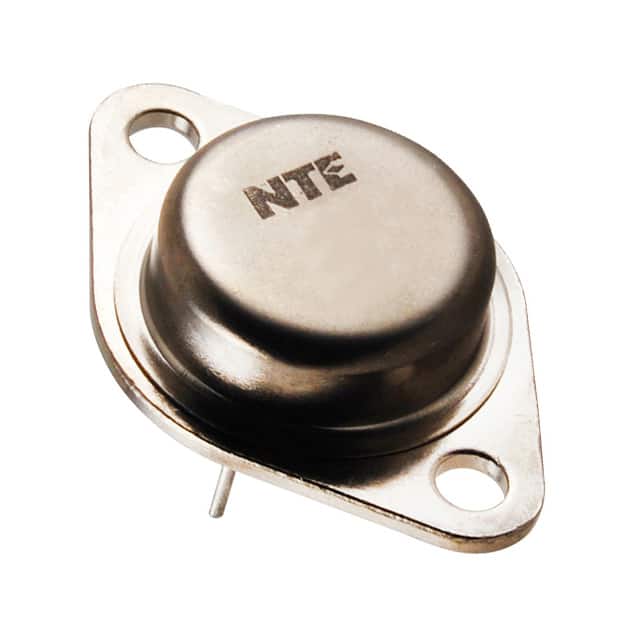

| Package / Case | TO-204AA, TO-3 | TO-204AA, TO-3 | TO-204AA, TO-3 | TO-204AA, TO-3 |
| Supplier Device Package | TO-3 | TO-3 | TO-3 | TO-3 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
