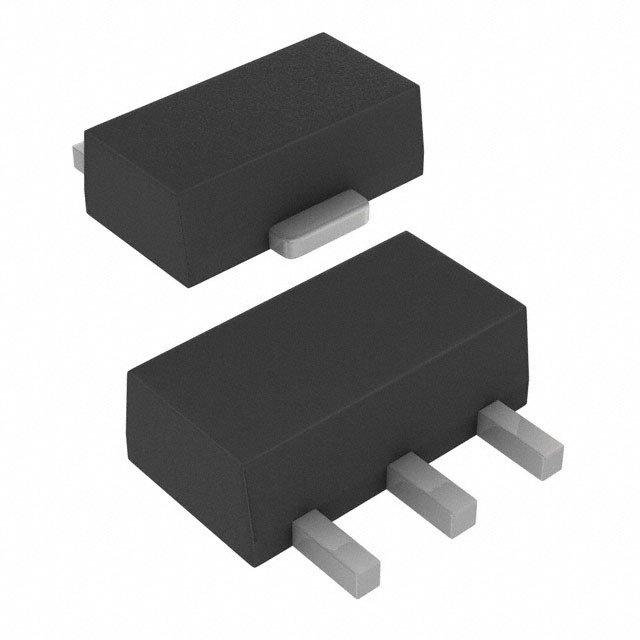

| Part Number | TP2520N8-G | TP2540N8-G | TP2522N8-G | TP2510N8-G |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V | 400 V | 220 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 260mA (Tj) | 125mA (Tj) | 260mA (Tj) | 480mA (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 12Ohm @ 200mA, 10V | 25Ohm @ 100mA, 10V | 12Ohm @ 200mA, 10V | 3.5Ohm @ 750mA, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 1mA | 2.4V @ 1mA | 2.4V @ 1mA | 2.4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - | - | - | - |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 125 pF @ 25 V | 125 pF @ 25 V | 125 pF @ 25 V | 125 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 1.6W (Ta) | 1.6W (Ta) | 1.6W (Ta) | 1.6W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | TO-243AA (SOT-89) | TO-243AA (SOT-89) | TO-243AA (SOT-89) | TO-243AA (SOT-89) |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA |
