Microchip Technology-TN2130K1-G-VAO - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	300 V
Current - Continuous Drain (Id) @ 25°C:	85mA (Tj)
Drive Voltage (Max Rds On, Min Rds On):	4.5V
Rds On (Max) @ Id, Vgs:	25Ohm @ 120mA, 4.5V
Vgs(th) (Max) @ Id:	2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	50 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	360mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23-3
Package / Case:	TO-236-3, SC-59, SOT-23-3

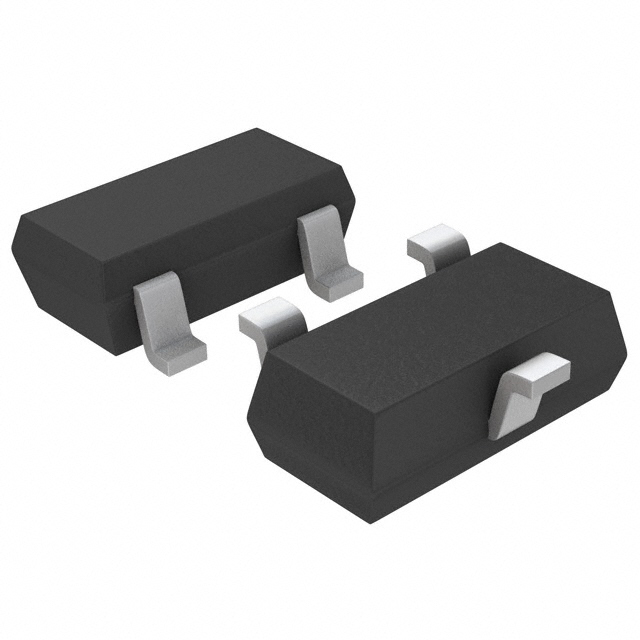

Microchip Technology TN2130K1-G-VAO
