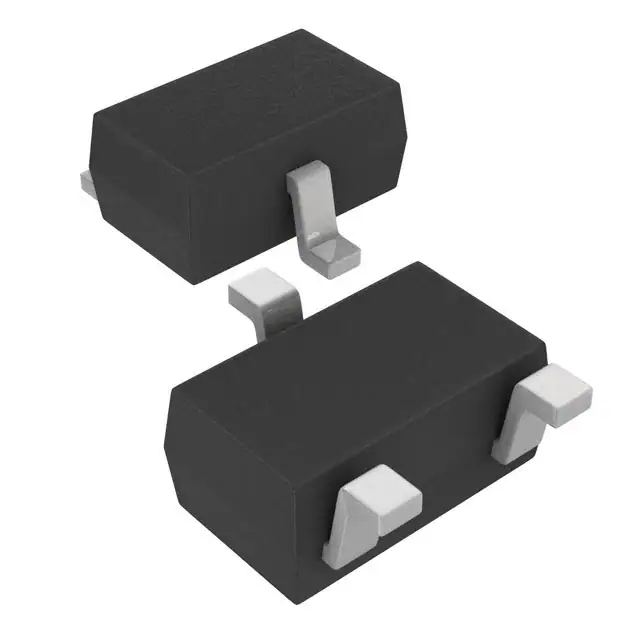

| Part Number | TCM810JVLB713 | TCM810MVLB713 | TCM810LVLB713 | TCM810ZVLB713 | TCM810TVLB713 | TCM810SVLB713 | TCM810RVLB713 | TCM810JVNB713 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Threshold | 4V | 4.38V | 4.63V | 2.32V | 3.08V | 2.93V | 2.63V | 4V |
| Output | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole |
| Reset | Active High | Active High | Active High | Active High | Active High | Active High | Active High | Active High |
| Reset Timeout | 140ms Minimum | 140ms Minimum | 140ms Minimum | 140ms Minimum | 140ms Minimum | 140ms Minimum | 140ms Minimum | 140ms Minimum |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-70-3 | SC-70-3 | SC-70-3 | SC-70-3 | SC-70-3 | SC-70-3 | SC-70-3 | SOT-23-3 |
